Make Sophisticated Laser Cut Parts

Matte White Acrylic 1 - Laser Cut Parts
Matte White Acrylic 1 - Laser Cut Parts

Introducing Matte White Acrylic To The NZ Catalog

Acrylic is the most popular material for laser cutting for a reason—make that several! It’s super versatile; you can design anything from electronics enclosures and robots to jewelry and wedding decorations. Plus, it’s affordable, so you can keep costs low and, if you’re creating a product to sell, this means a higher profit margin.

And while we love the sleek, shiny acrylic, there’s something really special about matte acrylic, too. It has a luxe vibe, giving the pieces an air of sophistication. The matte finish is reminiscent of a painted or metallic finish, and it keeps those pesky fingerprints at bay—an important consideration if your product will be handled a lot.

So if you’d like to give matte acrylic a go for your next laser cutter project, check out the new matte white acrylic we just added to the NZ materials catalog.

Matte White Acrylic For Electronics

Acrylic is ideal for laser cutting electronic project boxes, especially when the design includes clips to fasten the flat pieces (shown above) together.

Matte White Acrylic 2 - Electronics Box Clips

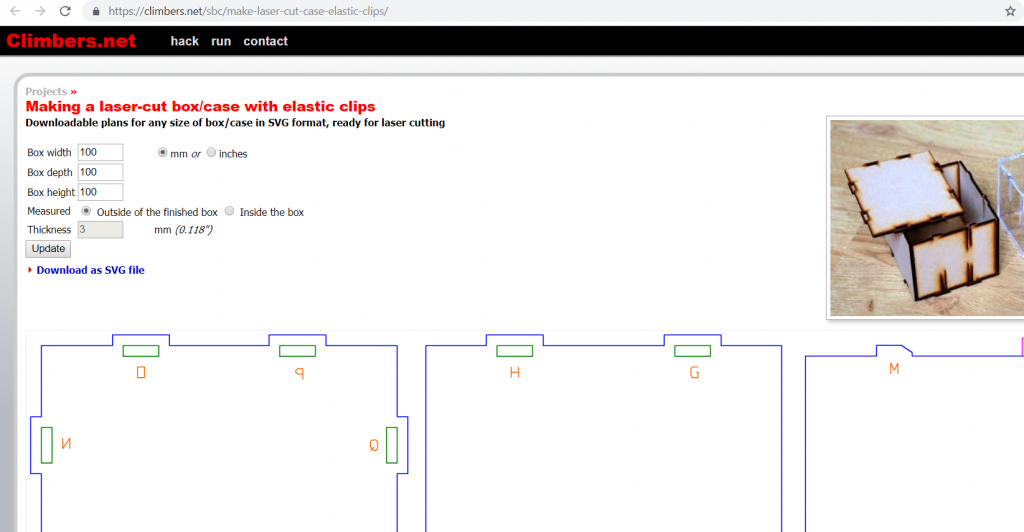

To simply the box making, we used this site to create the file. Simply input the dimensions, and the program generates a file for 3mm acrylic (the most common acrylic thickness used).

Matte White Acrylic 3 - Box Maker

Overall we found this a pretty neat way to quickly make a box, as the clips hold the box together without any need for glue or fasteners. That said, this design didn’t yield the most solid of boxes, so some iterations may be needed for an enclosure that’s more structurally sound. While this box as an example of how clips can be used to fasten pieces, it’s easy to see how the clips can also be integrated into other designs that need assembly.

Keep in mind that engraving on white doesn’t show up that well, so if you want engraved designs or text to pop (especially if you’re labeling buttons on electronics), you’ll need add a bit of color to engraved areas after making.

Matte White Acrylic For Jewelry

Acrylic is highly suited toward laser cutting jewelry because it isn’t too heavy (you know those super heaving earrings that drag you down), but also isn’t too light (such as the very thin bamboo pendants that don’t often sit well on a necklace). Curious at how it looks? Check out these designs that look quite sophisticated:

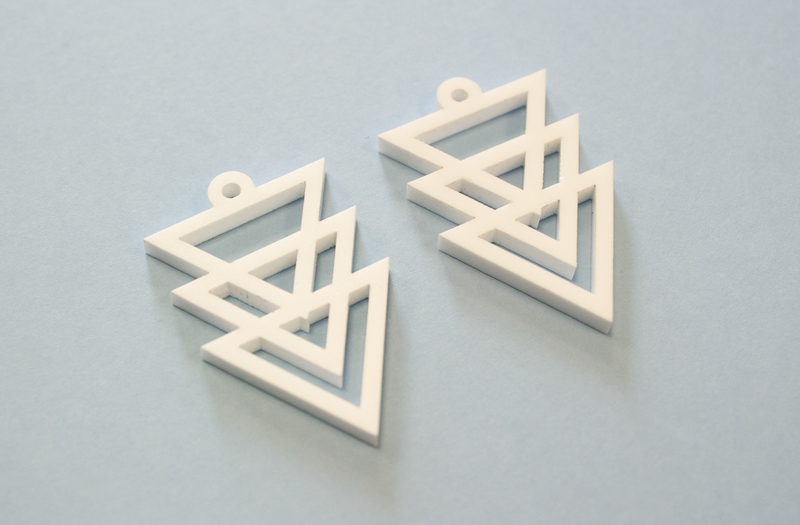

Geometric designs always look great laser cut, and these layered triangles are no exception.

Matte White Acrylic 4 - Earrings

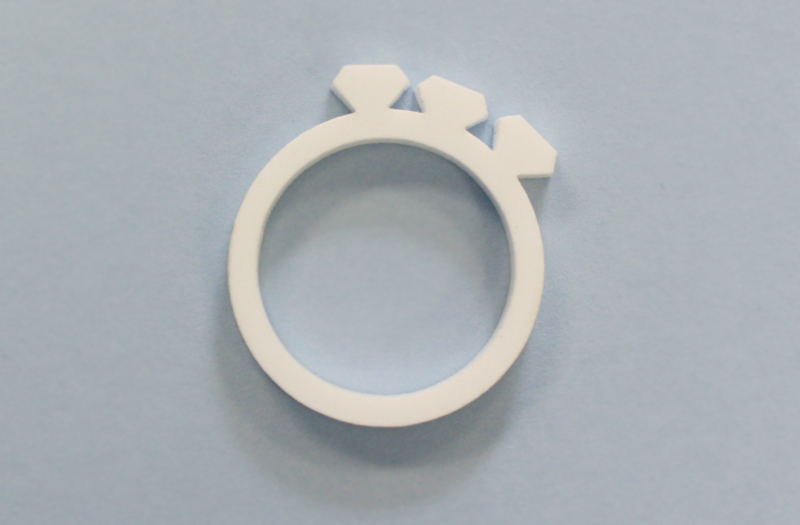

In contrast to the geometric shapes of the earrings above, this ring showcases the smooth circle of the ring with a few “diamonds,” because we all know they’re a girl’s best friend.

Matte White Acrylic 5 - Ring

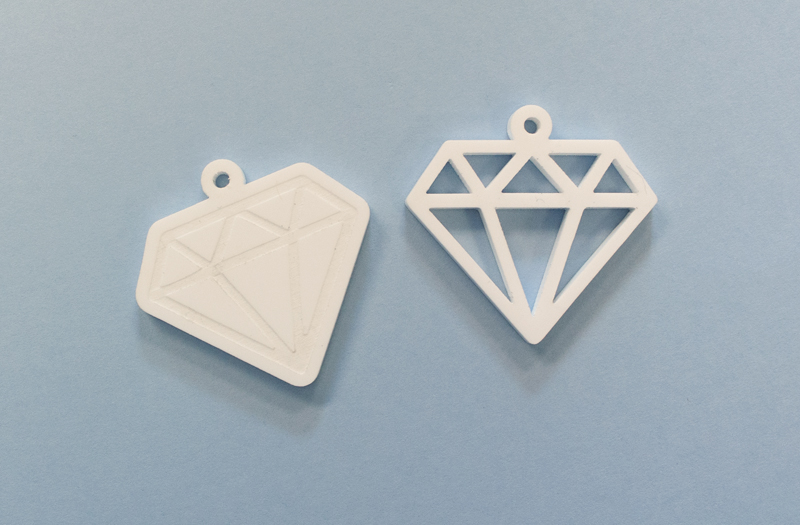

With this pendant, you can see the difference with laser engraving a solid shape on the left vs. a fully laser cut piece on the right. The engraving is subtle, so if you want it to be more visible, you’ll need to add a bit of color via hand finishing.

Matte White Acrylic 6 - Diamond Shaped Pendant

Now Available: White Matte Acrylic

With a matte finish on one side and a glossy finish on the other, this acrylic is hard and stiff as plastics go. Because it is so rigid, acrylic is sensitive to stress concentrations, especially if parts are small or thin. Details should not be smaller than 1mm/0.04″ as they are likely to be too fragile.

Maker Tips: Creating structures from acrylic can be tricky due to variations in the material thickness. Creating a design that can accommodate variations in the material thickness is the best way to go. This post on making interlocking designs can help.

Additionally the laser cuts at a slight taper (1-2 degrees) since the laser beam is shaped like a cone. The tapering causes one side to be slightly smaller than the other side. The taper is almost unnoticeable in 1/8″ material; the thicker the material, the more noticeable the taper. When using laser cut parts such as wheels or gears, you might need to position the parts in an alternating pattern so that the tapers “cancel out.”

Matte White Acrylic 7 - Sheet

If you find Matte White Acrylic inspiring, find all the details here and grab a sample here.

What Will You Laser Cut With White Matte Acrylic?

What do you think about this new white matte acrylic? Will you make electronic enclosures or jewelry like we did, or will you use it for something unexpected? Whatever you decide, drop us a line below to tell us all about it. We’d love to hear what you’re making!
