Browser-based vector nesting tool optimises laser cut layouts
Fitting all of your laser cut parts so that they squish into the least possible area on your laser cutting template can be tricky. Most of us will approach this by trial-and-error, manually shifting objects around until it ‘looks about right’. While this will save a bit of laser time, with complex designs the process can be laborious and you can’t really know whether the layout you have chosen is the best possible solution.
That’s where clever software such as Jack Qiao’s SVG Nest can really come in handy.
What is SVG Nest?
Rivalling powerful (and expensive) commercial options, the freely available SVG Nest uses all the computing muscle your browser can throw at it to come up with the optimal layout for your laser cutting. By grouping all of the elements within a defined area, the geometry-driven genetic algorithm is able to find the best fit by first setting the largest shapes, and then working in the smaller objects around them. It gets really interesting when there are many many design elements, and also when the objects to be sorted are all of a similar size.

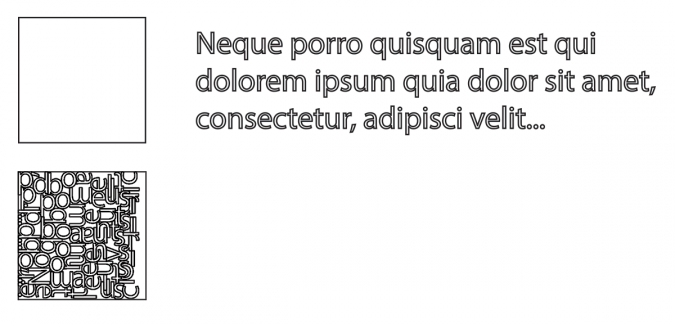

Here’s an example using laser cut lettering:
Why is this useful for laser cutting?
As we’ve previously outlined in the Top Ten Ways To Reduce Laser Cutting Costs, how you position your designs on the Ponoko template can really make a difference to your laser cutting pricing. One of the reasons for this is that the laser head has less distance to travel between each part, and as you are paying for laser time, minimising travel is an immediate cost saving. Another consideration is the material cost itself – minimising material wastage will also save you money. As an added bonus, being thrifty with your resources can make you feel good too!
For more information about SVG Nest head to Jack’s GIT repository, where you can also see a demo of the software in action. Just be warned, it is seriously CPU intensive so those on mobile devices might want to wait until they’re sitting in front of a harder hitting machine before trying it out.
via Just Add Sharks
